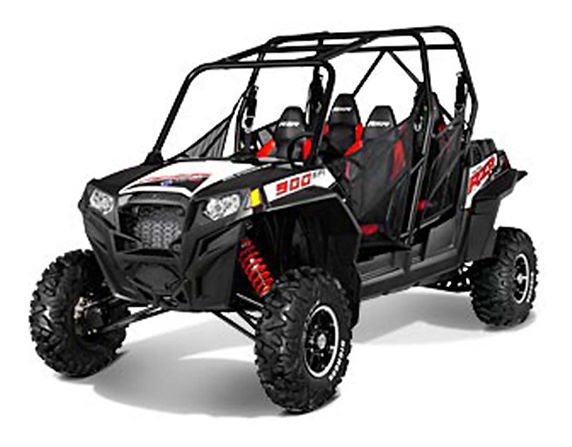

Ranger RZR 900 XP 4


    Engine Type 4-Stroke DOHC Twin Cylinder
    Displacement 875cc
    Fuel System Electronic Fuel Injection
    Cooling Liquid


    Transmission/Final Drive Automatic PVT P/R/N/L/H; Shaft
    Drive System On-Demand True AWD/2WD
    Engine Braking System Not Equipped
    Active Descent Control Not Equipped


    Front Suspension Dual A-Arm Walker Evans 2" body (comp adjust/res.) 13.5" (34.3 cm) Travel
    Rear Suspension Trailing Arm Walker Evans 2.5" body (comp adjust/res.) 14" (35.6 cm) Travel


    Front/Rear Brakes 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
    Parking Brake Park in Transmission

Tires / Wheels

    Front Tires 27 x 9-12; ITP 900 XCT
    Rear Tires 27 x 11-12; ITP 900 XCT
    Wheels Cast Aluminum

Dimensions / Capacities

    Wheelbase 107.4" ( 272.8 cm)
    Dry Weight 1,390 lbs. (631.8 kg)
    Overall Vehicle Size (L x W x H) 134.4" x 64" x 77" (341.4 x 162.6 x 195.6 cm)
    Ground Clearance 12.5" (31.75 cm)
    Seat Height N.A.
    Fuel Capacity 7.25 gal (27.4 L)
    Bed Box Dimensions (L x W x H) 23 x 38 x 10" (58.4 x 96.5 x 25.4 cm)
    Front/Rear Rack or Box Capacity N.A./300 lb (136.1 kg)
    Payload Capacity 900 lb (408.2 kg)
    Hitch Towing Rating N.A.
    Unbraked Trailer Towing Capacity N.A.
    Hitch/Type None


    Cargo System Lock & Ride
    Lighting White LED, High/Low
    Electronic Power Steering Available on Limited Edition
    Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, Coolant Temp, DC Outlets (2)
